Aiming to maintain and improve advanced plant design technology, we are constantly collecting information on the latest software technology and introducing it effectively. We are working to improve productivity and the quality of design services through the development of a software environment by a specialized team, data linkage between software, and program development for CAD systems .
01
S3D Administrative Work
Piping Catalogue & Specification
Drawing setup

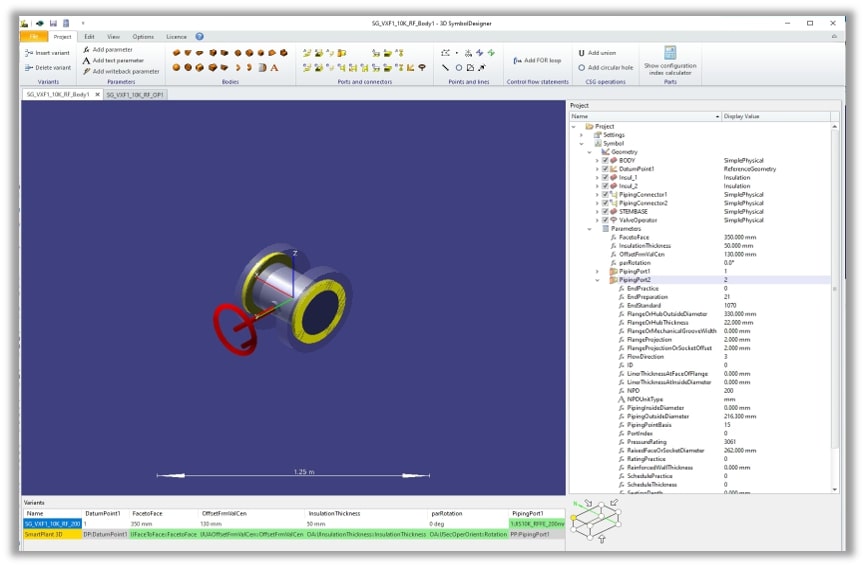

![Piping Catalogue & Specification](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Using-3D-Symbol-Designer-Software.jpg)

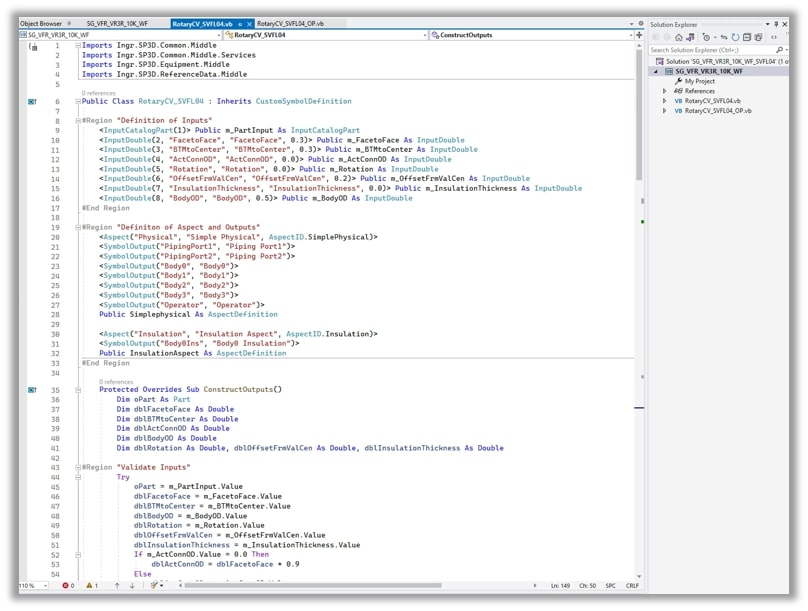

![Piping Catalogue & Specification](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Using-VB.NET_.jpg)

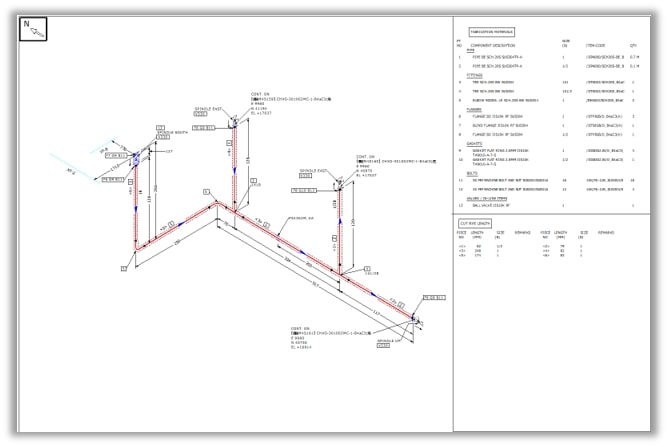

![Drawing setup](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Isometric.jpg)

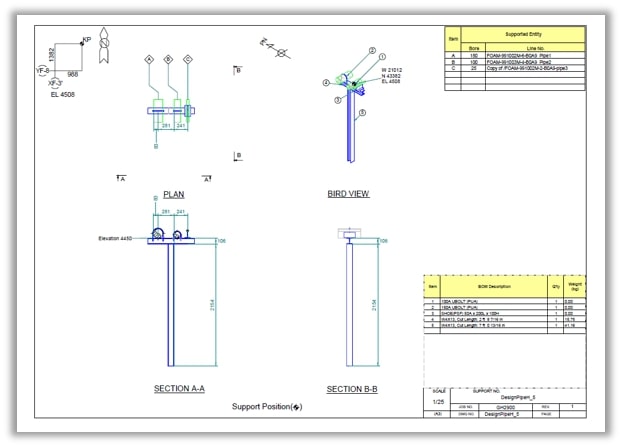

![Drawing setup](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Support-Detail.jpg)

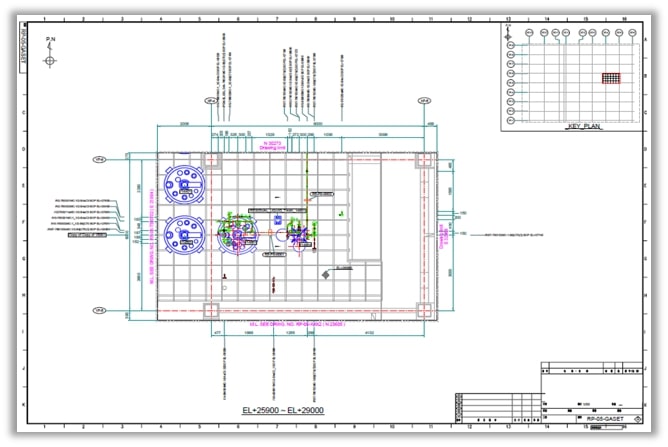

![Drawing setup](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Piping-Layout.jpg)
S3D Macro System
Aiming to maintain and improve advanced plant design technology, we are constantly collecting information on the latest software technology and introducing it effectively. We are working to improve productivity and the quality of design services through the development of a software environment by a specialized team, data linkage between software, and program development for CAD systems .
02
S3D MACRO SYSTEM

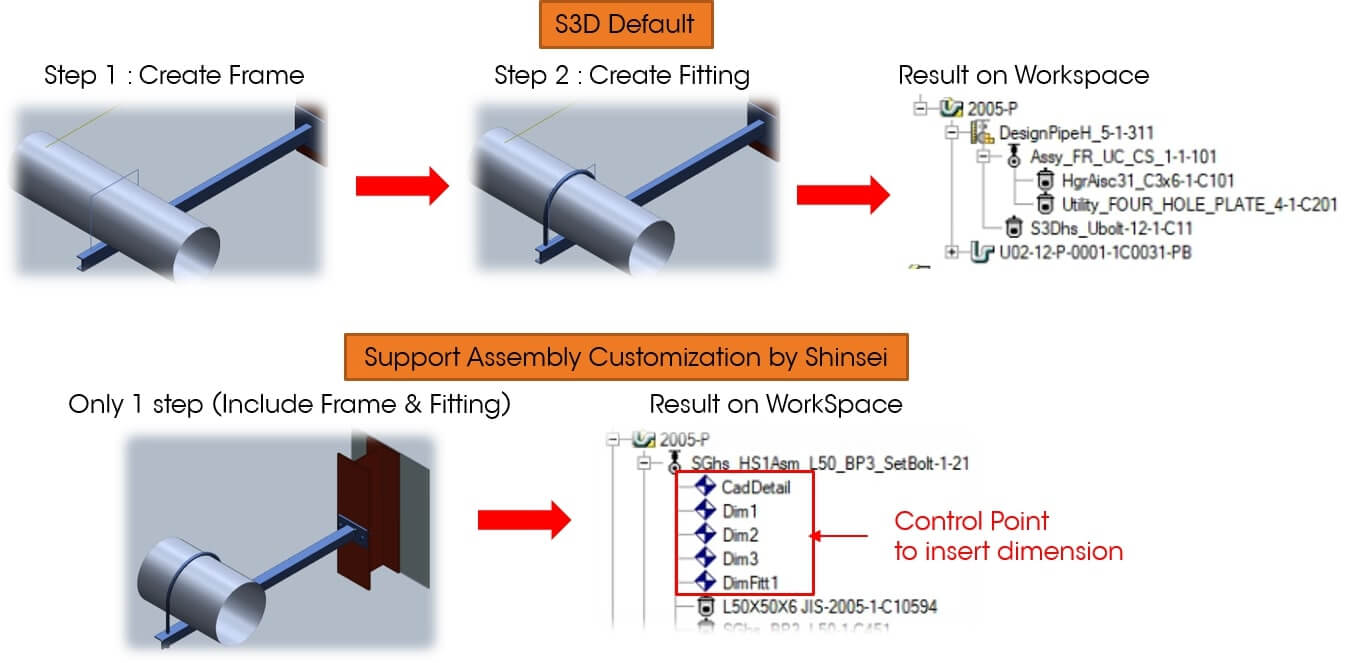

Support Assembly customization

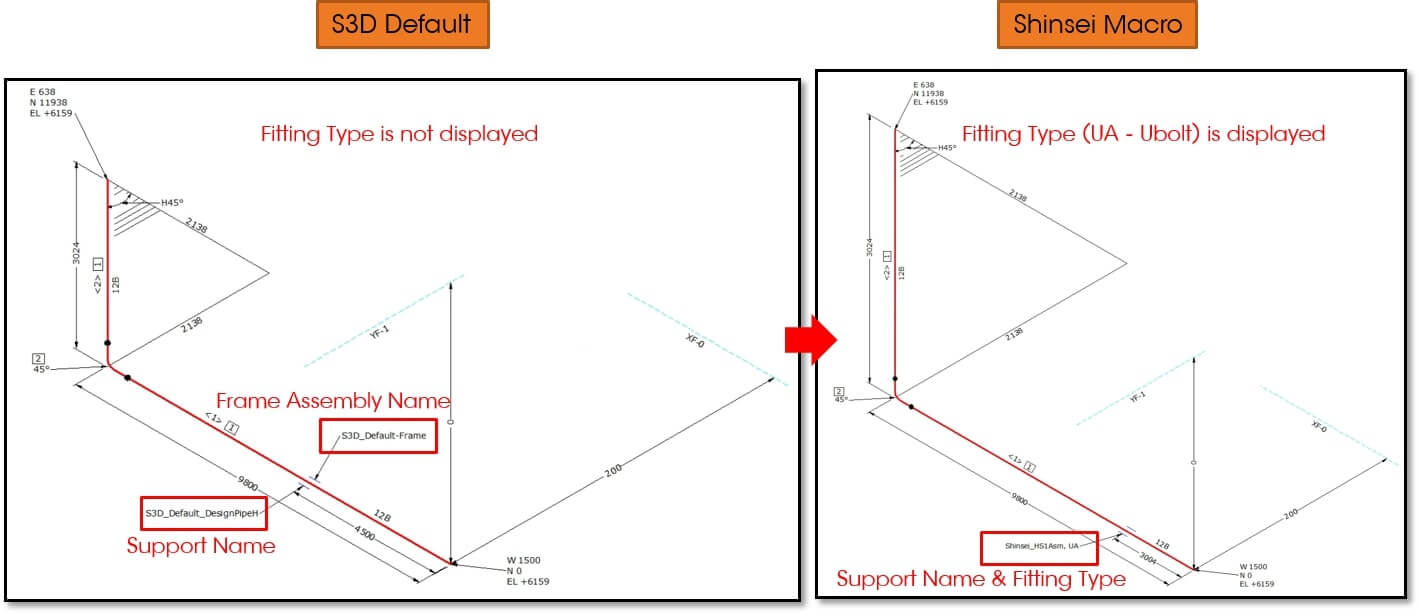

Create temporary support into Pipeline

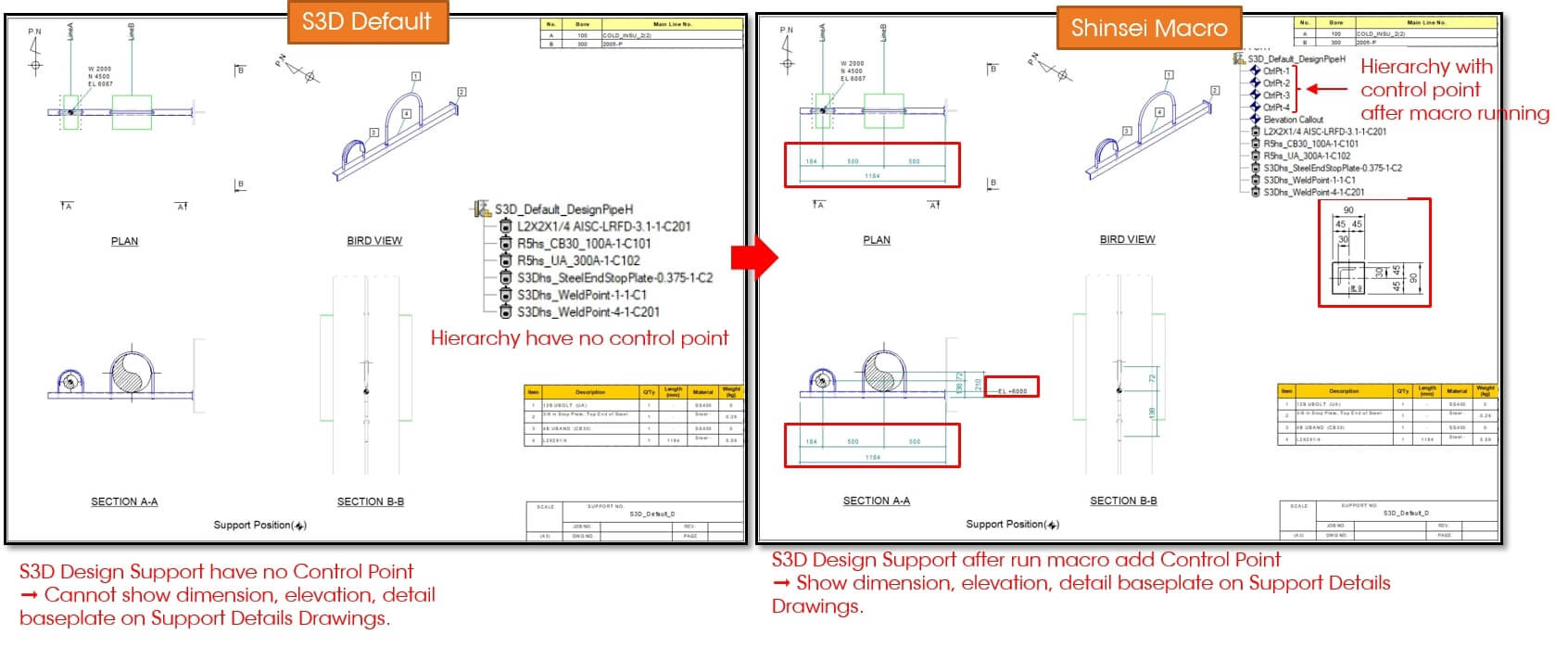

Create control point to Design Support

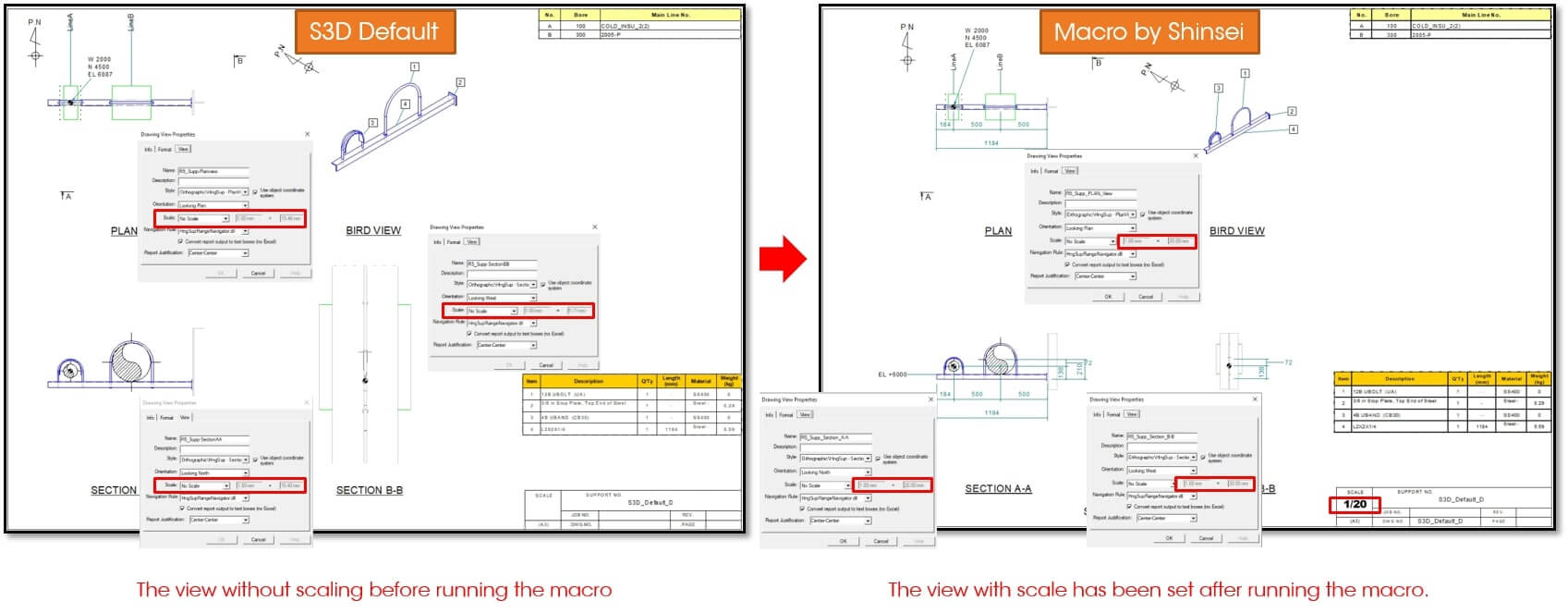

Change View Scale of Support Detail Drawing
![Support Assembly customization](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Support-Assembly-customization.jpg)
![Create temporary support into Pipeline](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Create-temporary-support-into-Pipeline.jpg)
![Add Control Point for Support Design](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Change-View-Scale-of-Support-Detail-Drawing.jpg)
![Change View Scale of Support Detail Drawing](https://shinseivietnam.com.vn/wp-content/uploads/2023/07/Add-Control-Point-for-Support-Design.jpg)
System Design
02
MODERN TOOL MANAGEMENT
Aiming to maintain and improve advanced plant design technology, we are constantly collecting information on the latest software technology and introducing it effectively. We are working to improve productivity and the quality of design services through the development of a software environment by a specialized team, data linkage between software, and program development for CAD systems.
Workflow ofTools
03
Workflow of Tools / Macro Development
Receive request
From Engineer / Customers
Requirements
Analysis
System / Target /Guarantees can be understood by both developers and customers.
Design
System Design (Function, Object, Class,…)
Development
Coding by Programmer
Testing
Check multiple cases
Deployment
Publish to customers
Maintenance
Upgrade / Fix bugs
